STEMPLE RUNG

art. 230

A ribbed stemple in DUPLEX Ø16 mm

Width = 400 m

Depth = 270 mm

The extended width of this stemple makes it very comfortable for use with both feet, as a rest or waiting position.

The ribbing on the surface guarantees excellent grip.

It is also comfortable and ergonomic when used as a hand hold.

The ribbing also ensures excellent hold from the resin inside the hole.

The precise gap between the rung’s two shanks allows for easy placement during construction.

Finally the galvanised steel guarantees good durability.

The surface of the rung is a pleasant pale grey which has a low visual impact on the surrounding natural environment.

The placement holes must be Ø 20 mm and each shank must be inserted to a depth of at least 120 mm

Ensure that the inside area of the stemple is small enough to prevent boots (of any size) from slipping through as this can be very dangerous - max 150 mm

TECHNICAL SPECIFICATION

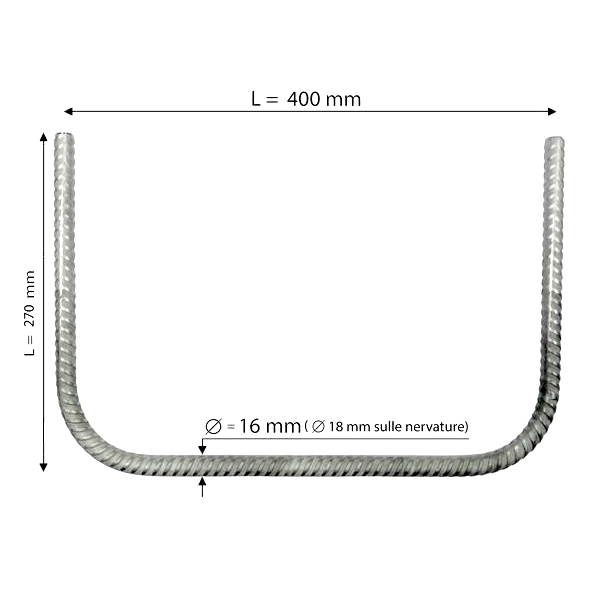

In the photo it appears that the shanks of the rung are not completely parallel.

This is simply a distorted perspective.

In reality, all of our stemples have perfectly parallel shanks.

The gap of 400 mm has been created to an accuracy of +/- 2mm

Therefore there should be no problems when inserting the shanks into two parallel holes.

Weight: 1360 gr
