EUROPE Ø10 A316L

art. 187

A new BELAY anchor for climbing and canyoning use.

An innovative, practical and resistant anchor.

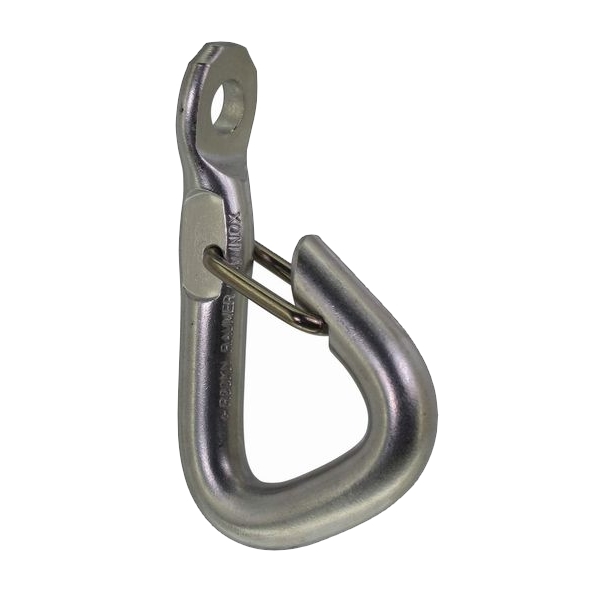

Composed of a stainless steel AISI 316L Ø13mm ring, this product resembles and acts as a carabiner fixed perpendicular to the face.

Recommended use: belays or for top-roping lower-offs.

These anchors must be placed in pairs to ensure maximum safety.

One of the anchors must be used as a “passive” back-up, which also prevents the rope from twisting. For correct placement and positioning please read the instructions for similar articles 185 and 186.

To place, use a Hang Fix Ø10 (see relevant articles 157 and 150), choosing an appropriate length for the consistency of the rock.

Highly resistant to wear as the rope runs against a 13mm diameter surface.

TECHNICAL SPECIFICATIONS

The material used in the majority of our anchors is now stainless steel AISI 316L, which offers a higher resistance to marine corrosion than the former AISI 304.

To highlight this change each article is stamped with the relevant symbols.

Attention: There is also a “Marina” version of this anchor which is highly resistant to saline corrosion.

To mark the difference between stainless steel AISI 316L and the marina version of the same material, all marine-suitable anchors have been marked with a fish symbol and the initials “INOX".
