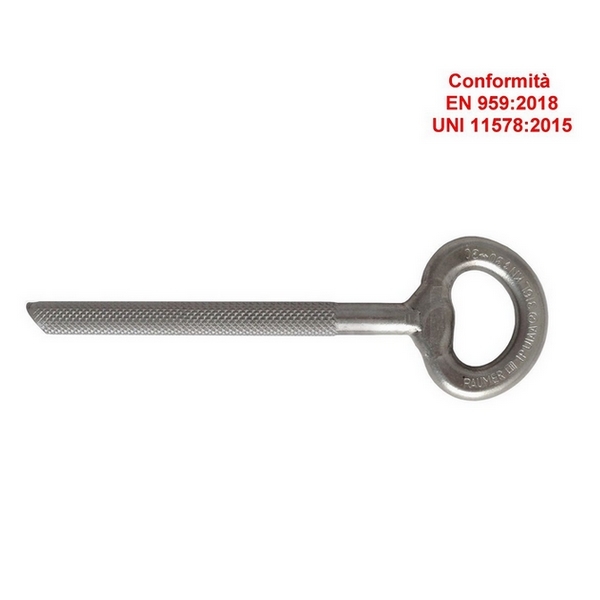

RADIUS Ø10x120 A316L

art. 521



Stainless steel resin anchor with a semi-circular eyelet, hence the name Radius.

Designed to deliver high performance in tensile and shear strength.

It shares the characteristics and usage as art. 520 but has a total shank length of 120 mm

The knurled section is 100 mm long; this provides increased resistance to tensile force when the anchor is placed on soft or loose rock.

It is therefore particularly suitable for sandstone or soft limestone.

TECHNICAL INFORMATIONS

• The shank is knurled; This method of resin fixing has long been the most reliable and resistant, particularly when compared with resin anchors with transversal grooves or horizontal dimpled surfaces which are notoriously unreliable and dangerous!
• The anchor's eyelet can easily accommodate two carabiners simultaneously or a Ø10 mm folded and flattened rope.
• The “SUPERSTAR” anchor's eyelet is perfectly smooth, allowing top-rope lower-offs without damaging the rope sheath.
• Like all our climbing anchor systems, the “SUPERSTAR”’s surface is matt grey to minimise environmental and visual impact.
• Avalable in “MARINA” Version - Art. 521 M, highly resistant to saline corrosion: the anchors have been marked with a fish symbol and the initials “INOX".
