BELAY GROUP Ø10 + 1 R5000 A316L

art. 219

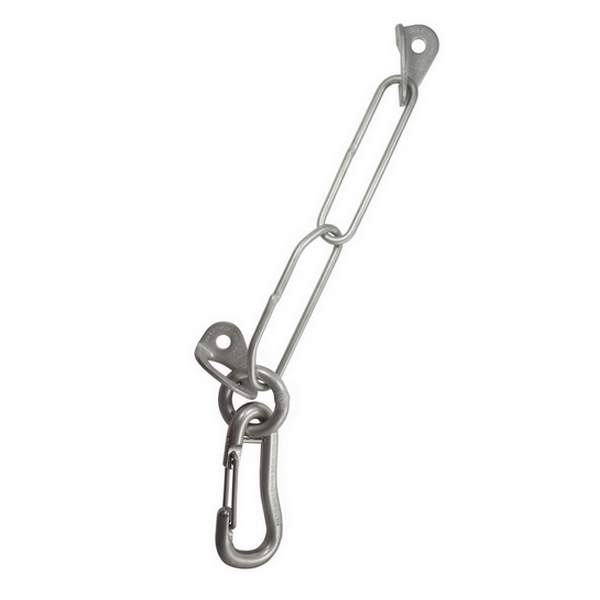

Stainless Steel Belay Station, composed of a belay station Art. 218 and a Carabiner R5000 (art. 600).

It is particularly popular as it can be used for stances in all disciplines (climbing, mountaineering and canyoning).

The abseil ring is parallel to the rock, so it is good to put the rope into a carabiner attached to the ring, which makes it extremely versatile and multi-directional stop.

TECHNICAL SPECIFICATIONS

• Composed by: 2 ROCK Ø10 (art.110), one chain (art.175), one round 10mm-thick ring (art.177) and one carabiner R5000 (art. 600)
• The abseil ring is created in 10mm thick stainless steel
• Internal ring diameter = 35 mm
• The carabiner is perpendicular to the rock; this is particularly useful for rope retrieval as it can be weight-loaded on either side without catching on the rock.
• The live rope must be “threaded” through the carabiner.
• This belay station comes at a very competitive price.
• To meet the requirements of the EN 959 the plate is to be used with its Hang Fix. We recommend the use of our Hang Fix stainless M10L (Art.157) .
• Consult the technical manual for installation, maintenance, etc
• There is also a “Marina” version – Art. 219Mwhich is highly resistant to saline corrosion. To mark the difference between stainless steel AISI 316L and the marina version of the same material, all marine-suitable anchors have been marked with a fish symbol and the initials “INOX".
• Custom Belay Stations can be created on request.
